Please keep in mind that not all clamps have the screws to receive a bracket such as this in the same place. This means it may not fit a clamp you have purchased elsewhere. That said, new holes can simply be drilled to accomodate the measurements (outlined below).

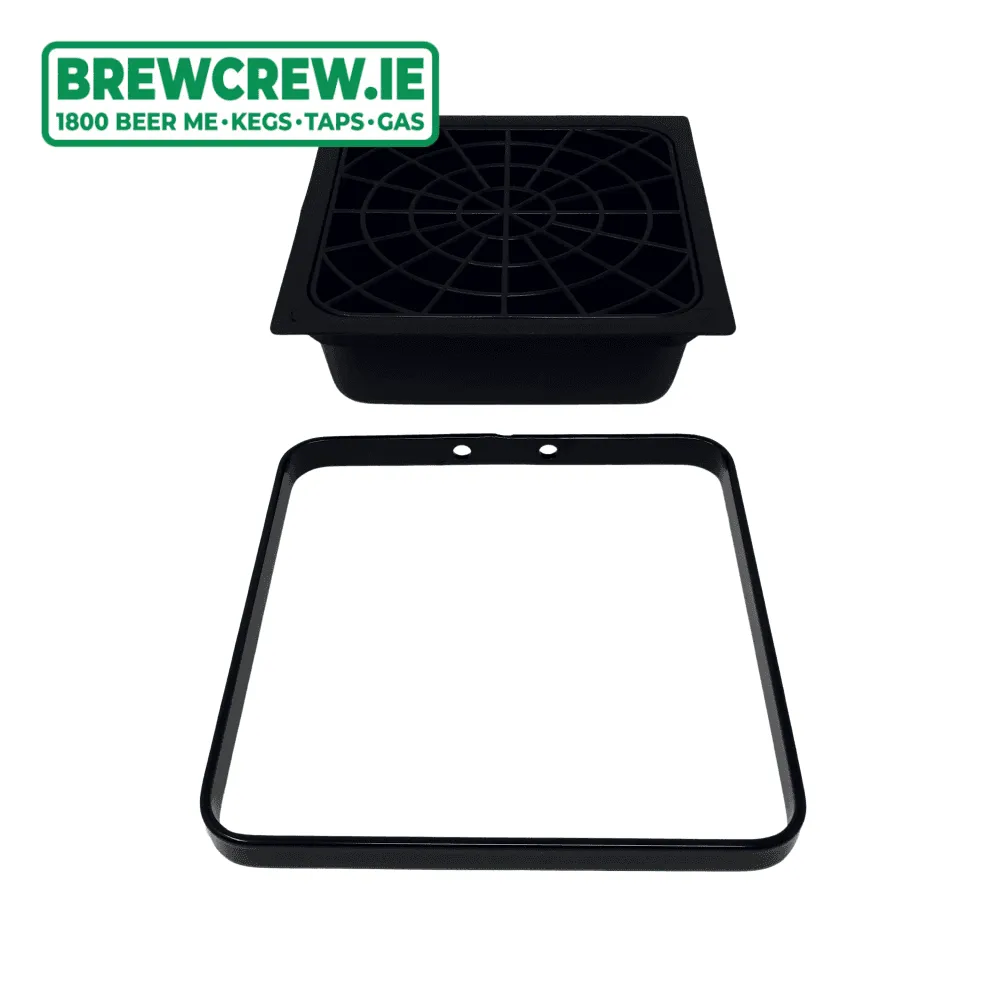

This attaches on to a clamp/other surface via two screws (usually supplied with a clamp). The measurements of the drip tray holder are as follows:
- 165mm length/width
- 220mm diagonal
- 13mm depth/thickness
- 7mm diameter of Screw holes
- 33mm between hole 1 and 2 (from centre)
- 65mm from edge of tray to centre of hole.

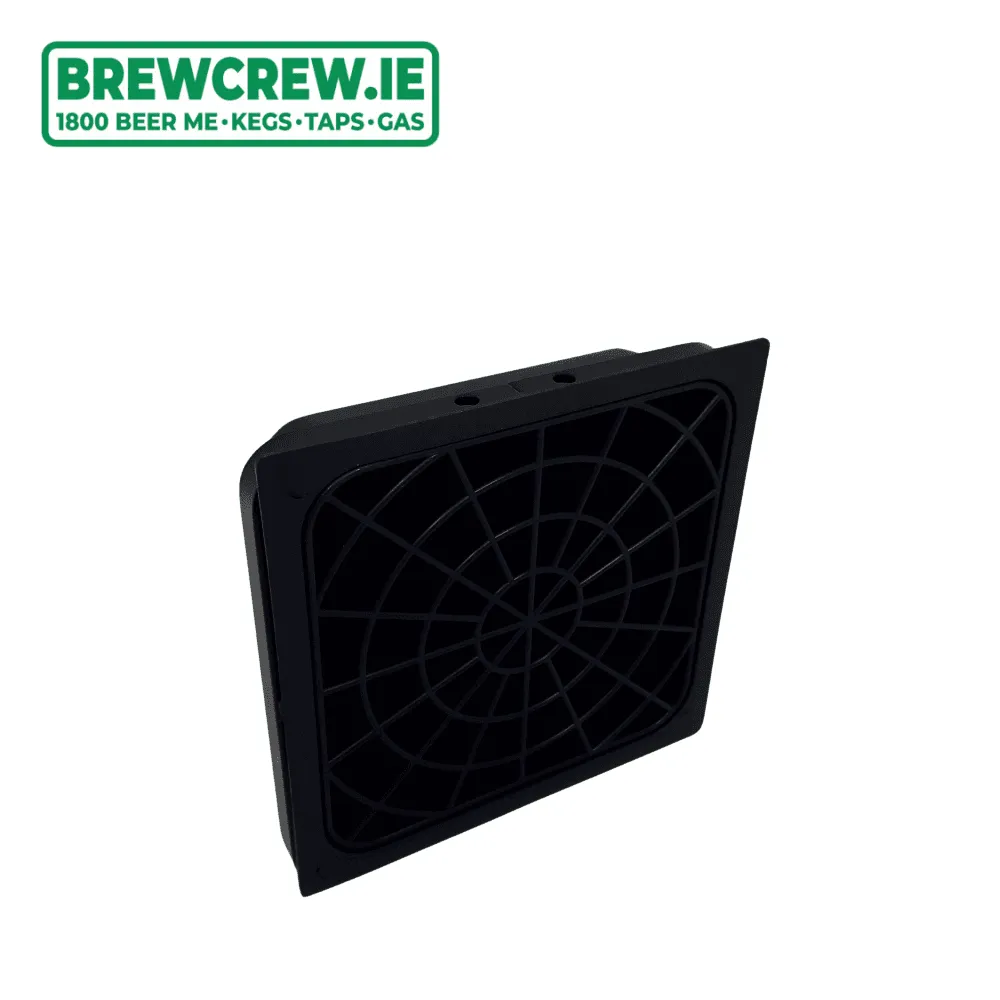

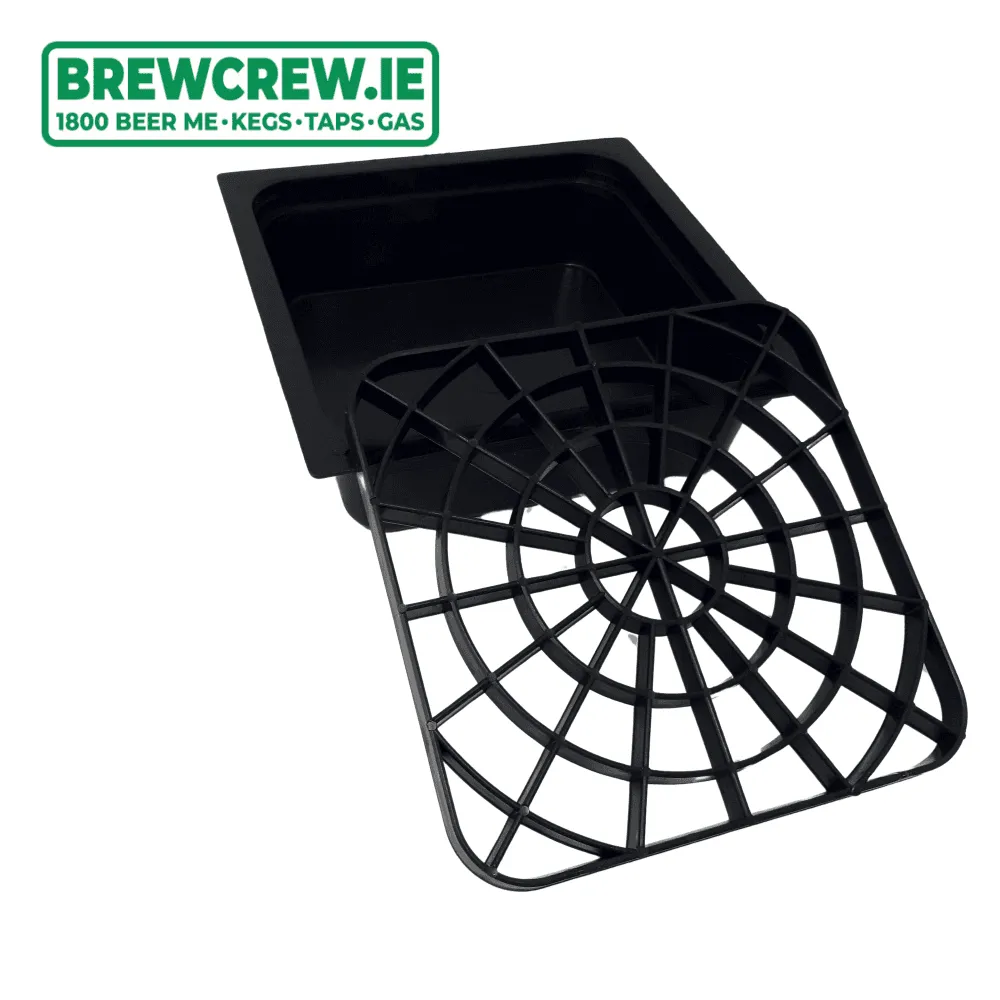

Drip Tray measurements:
- 168mm length external (from outside lip)
- 148mm length internal (inside lip/size of lid)
- 235mm external diagonal
- 190mm internal diagonal

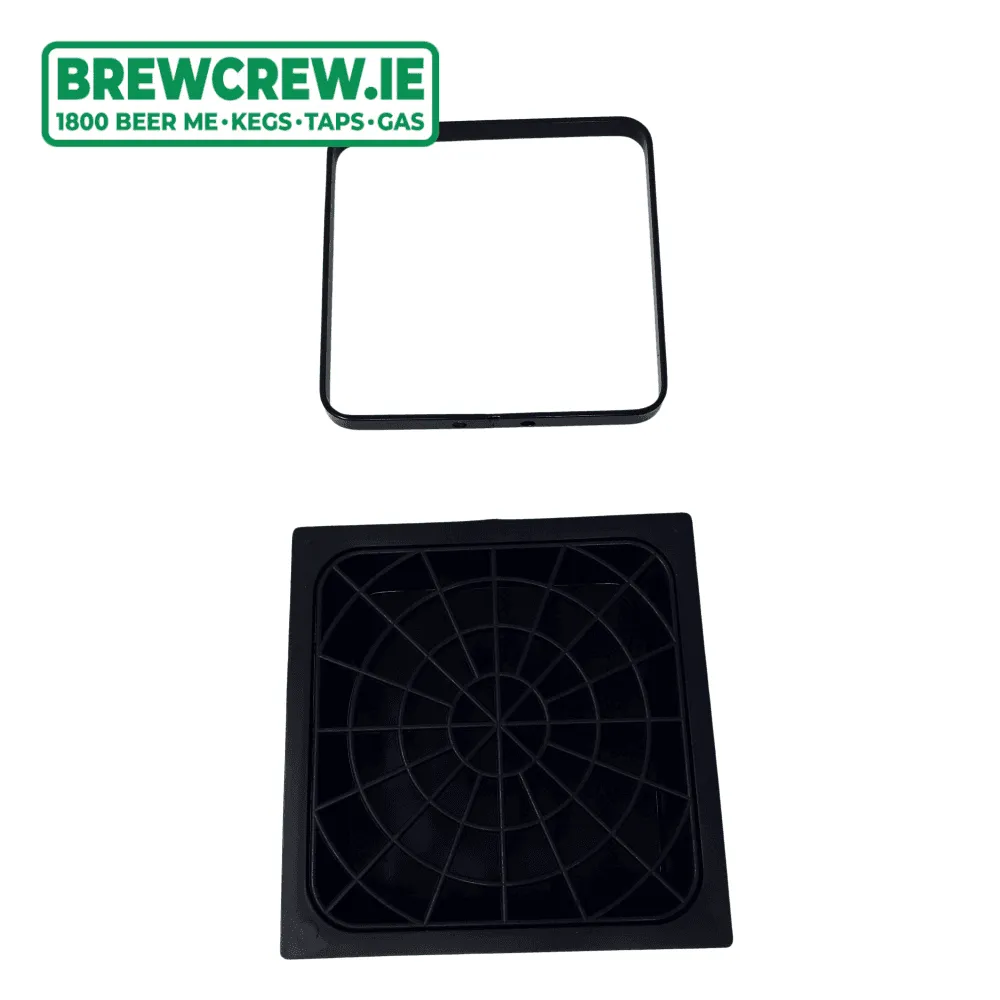

The drip tray sits neatly into the bracket.
