Name: KNIPEX Electronics Diagonal Cutter Pliers Round Head without Bevel 115mm Multi Component Grips 77 22 115 ESD
SKU: 709217

KNIPEX Electronics Diagonal Cutter Pliers Round Head without Bevel 115mm Multi Component Grips 77 22 115 ESD

$ 25.50

$ 0.00

Save: $

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

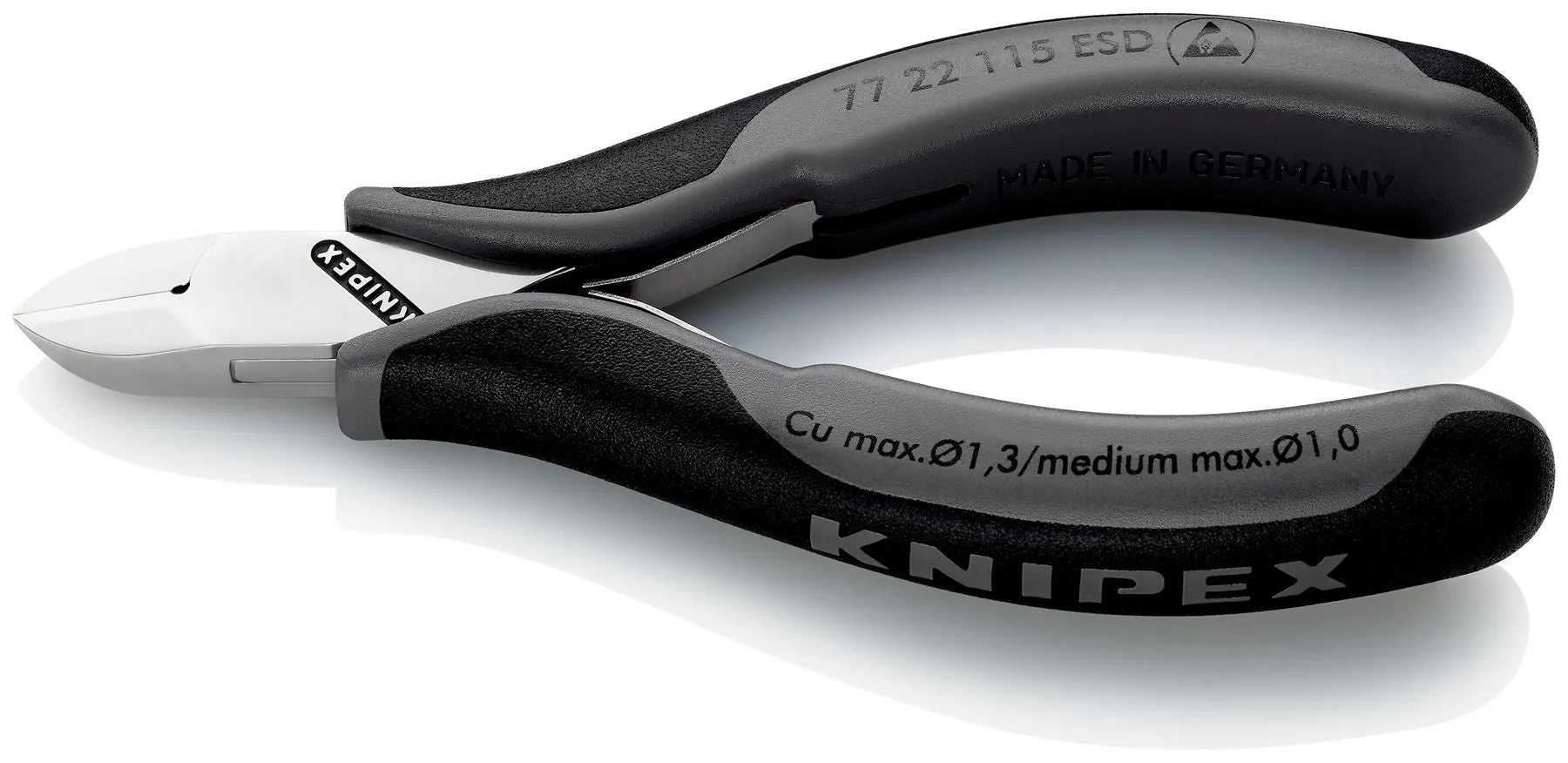

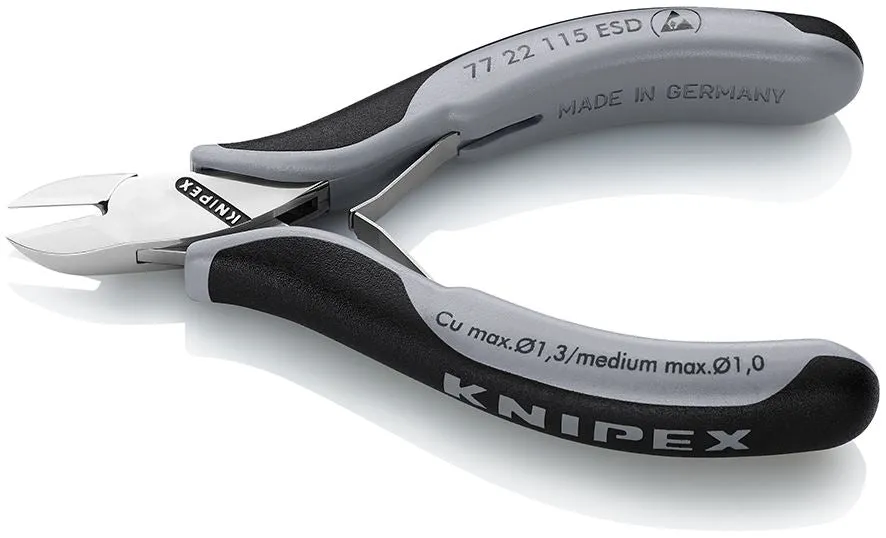

KNIPEX Electronics Diagonal Cutter Pliers Round Head without Bevel 115mm Multi Component Grips 77 22 115 ESD

77 22 115 ESD Electronics Diagonal Cutters ESD
For fine cutting work, e.g. in electronics and fine mechanics. Electrically discharging handles - dissipative. Sturdy, zero-backlash box joint. Low-friction double spring for gentle and even opening. The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC. Handles with two-colour multi-component grips black/grey. round head, without bevel. cutting edge hardness approx. 57 HRC.

Cutting capacities medium hard wire (diameter): Ø 1.0 mm

Cutting capacities soft wire (diameter): Ø 0.3 – 1.3 mm

Jaw length (B): 14 mm

Jaw thickness (joint) (D): 7.5 mm

Head width (A): 11 mm

ESD: yes

Technical Information:

cutting edge hardness approx. 57 HRC
cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
electrically discharging handles - dissipative
for fine cutting work, e.g. in electronics and fine mechanics
handles with two-colour multi-component grips black/grey
low-friction double spring for gentle and even opening
round head, without bevel
sturdy, zero-backlash box joint
the mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
