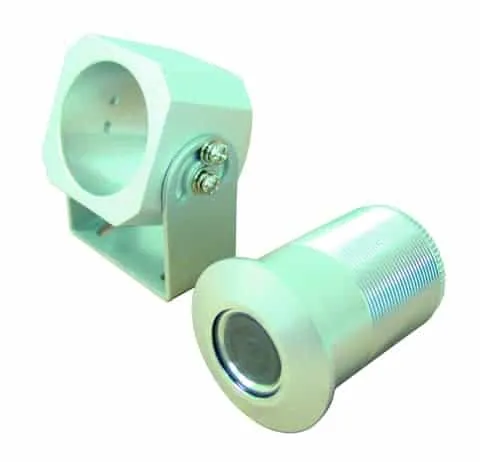

- Colour CCD camera
- Sturdy, water-proof aluminium housing
- Wide angle lens
- Miniature size for flexible mounting
- Panel mount capability or solid aluminium mounting bracket supplied
- Wide angle lens with large picture angle (150º diagonal)
- Mounting bracket included
- Compact size
This camera needs an adaptor cable to fit current M5L and M7L monitors (adapt 3) Technical data
- CAM 16
- Dimensions Ø30 x L46 mm (incl. mount)
- Operating voltage 12 volts
- DC Power input 80 mA (max 1 watt)
- Picture sensor 1/4" CCD sensor
- Resolution 290,000 pixels
- Picture angle 150° diagonal h: approx. 104° v: approx. 80°
- Light sensitivity 2 lux
- Video standard PAL
- Operating temperature –20 °C to 65 °C
- Vibration resistance 6 g
- Weight 60 g
- Brightness adjustment
- Electronic Mirror function Can be set
- Type of protection IP 67
- Test marks E13
